Anhui Mingteng Permanent-Magnetic Machinery & Cov Khoom Siv Hluav Taws Xob Co., Ltd., raws li lub tuam txhab ua lag luam hauv kev lag luam hlau nplaum ruaj khov, tau tsim nyob rau lub Kaum Hlis 18th, 2007. Nws yog lub tuam txhab high-tech niaj hnub uas koom nrog kev tshawb fawb thiab kev tsim kho, tsim khoom, kev muag khoom, thiab kev pabcuam ntawm cov hlau nplaum ruaj khov motors.
Thaum Lub Yim Hli 2023, peb lub tuam txhab tau xa tawm qhov sib txawv ntawm cov hlau nplaum ruaj khov mus rau Thaib teb thiab ua tiav kev xa khoom thaum lub Yim Hli kawg.Qhov no yog thawj zaug uas peb lub tuam txhab cov hlau nplaum ruaj khov synchronous lub cev muaj zog nrog lub zog ntau dua 2000 kilowatts tau raug xa tawm thiab muab tso rau hauv kev siv txawv teb chaws, qhia tias peb lub tuam txhab daim ntawv thov, kev tshawb fawb thiab kev tsim kho, thiab kev siv zog hauv kev lag luam ntawm cov hlau nplaum ruaj khov synchronous motors. yog nyob rau theem thawj ob hauv teb chaws thiab thoob ntiaj teb.

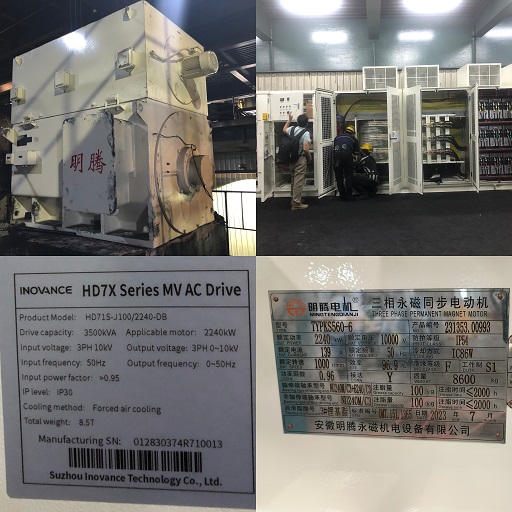

Cov neeg siv khoom: Zhongce Rubber (Thailand) Co., Ltd
Qauv: TYPKS560-6 10KV 1000rpm IC86W
Lub Zog: 2240KW
Load: Tov khoom
Tom qab nkag siab tag nrho cov yam ntxwv ua haujlwm thiab ib puag ncig ntawm cov khoom siv roj hmab kev lag luam, lub tuam txhab nruj me ntsis ua raws li cov neeg siv khoom thiab cov kev qhia tshwj xeeb, thiab nws tus kheej tsim thiab ua tiav ntau lawm.Technically saws:
(1) Txhim kho kev tsim hluav taws xob zoo, xaiv cov ntawv ua haujlwm zoo silicon steel rau cov ntaub ntawv stator thiab rotor core, txwv tsis pub ntau zaus hlau poob, thiab txhim kho kev ua haujlwm;
(2) Kev siv lub tshuab dov kabmob, nws muaj peev xwm thauj khoom loj thiab muaj kev ntseeg siab, uas txhim kho lub peev xwm ntawm lub cev muaj zog.Ib qho kev txhawb nqa sab hauv tau tsim rau lub cev muaj zog, ua rau nws yooj yim rau nruab thiab disassemble bearings thiab yooj yim los tswj.
(3) Xaiv qhov sib txuam, qhov ua kom zoo ntawm stator qhov sib piv, zoo txo lub cev muaj zog qhov torque thiab txo lub suab nrov;
(4) Kev siv IC86W txias txoj kev los txhim kho cov nyhuv txias thiab ua kom lub cev muaj zog nce siab.
Cov saum toj no zoo heev ua kom cov efficiency, kev ua hauj lwm, thiab stability ntawm lub cev muaj zog.
Peb lub tuam txhab xa cov neeg ua haujlwm rau Thaib teb rau kev teeb tsa thiab kev debugging raws li cov neeg siv khoom xav tau, thiab cov cuab yeej siv tam sim no ua haujlwm zoo nrog cov neeg siv khoom txaus siab.Nyob rau hauv qhov project no, piv rau tus thawj tsav system, nws tsis tsuas yog txhim kho efficiency, tab sis kuj siv ib tug zaus converter los koom tes nrog startup kom ua tiav stepless ceev tswj, txo cov cuab yeej cuam tshuam, thiab kuj tuaj yeem kho qhov ceev raws li kev ua haujlwm, ua rau nyob rau hauv tseem ceeb zog-txuag cov teebmeem.
Mingteng ruaj khov hlau nplaum synchronous lub cev muaj zog (https://www.mingtengmotor.com/products/) siv cov hlau nplaum tas mus li los muab cov hlau nplaum uas xav tau rau kev hloov hluav taws xob hluav taws xob, tsis tas yuav muaj lub zog excitation.Thaum lub sijhawm ua haujlwm synchronous, yuav luag tsis muaj tam sim no nyob rau hauv lub rotor, yog li cov tooj liab poob ntawm lub rotor yog nyob ze rau xoom, thiab lub zog ua haujlwm tau zoo heev piv rau asynchronous motors.Lub reactive tam sim no nyob rau hauv stator winding yog me me, thiab lub stator tooj liab poob yog txo.Nyob rau tib lub sijhawm, qhov ua tau zoo ntawm cov hlau nplaum ruaj khov synchronous motors siab dua li ntawm asynchronous motors.Qhov tseeb ua haujlwm tam sim no ntawm cov hlau nplaum ruaj khov synchronous motors yog ntau dua 15% qis dua li ntawm asynchronous motors.Piv nrog rau peb-theem asynchronous motors ntawm tib lub zog thiab ceev, qhov kub thiab txias yog txo los ntawm 20K, lub hwj chim qhov tseem ceeb mus txog 0.96 los yog siab dua, thiab cov qhab-nees efficiency yog nce los ntawm 1% mus rau 8% los yog siab tshaj ntawm peb. - theem asynchronous motors.Qhov Performance index ua tau raws li lossis tshaj IE5 tus qauv.Tam sim no, ntau tshaj 300 lub tuam txhab tau xaiv Mingteng mus tas li hlau nplaum lub cev muaj zog ua cov khoom siv tsav tsheb rau kev txo qis thiab kev txhim kho ntau lawm.
Peb ntseeg hais tias Mingteng mus tas li hlau nplaum lub cev muaj zog, nrog rau nws lub zog-txuag thiab txij nkawm dawb qhov zoo, kuj yuav nyiam los ntawm ntau lub tuam txhab txawv teb chaws yav tom ntej, thiab yuav ci ntsa iab ntau dua nyob rau theem ntawm kev lag luam tsav tsheb.
Post lub sij hawm: Dec-29-2023
